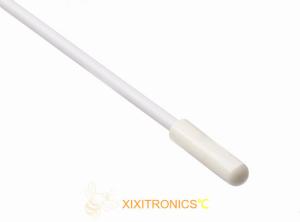

Round Top Tube Temperature Sensor For Refrigerator Heating Floor MFT-03 Series

Brief Introduction:

MFT-03 series choose ABS housing, nylon housing and encapsulated with epoxy resin. TPE housing which is widely used in temperature measuring and controlling for cryogenic refrigerator, air-conditioner, the floor heating.
Plastic housings have excellent performance of cool-resistance, moisture proof, high reliability and cool-and-hot resistance. The annual drift rate is small.

Features:
■ A glass-encapsulated thermistor is sealed in a ABS,Nylon,Cu/ni ,SUS housing
■ High precision for Resistance value and B value

■ Proven long term Stability and Reliability, and Good consistency of product

■ Good performance of moisture and low temperature resistance and voltage resistance.

■ Products are in accordance with the RoHS, REACH certification
■ Various protection tube are available ( Plastic housings have excellent performance of being cold and heat resistant.)

Applications:
■ Refrigerator, Freezer, Heating Floor

■ Air-conditioners (room and outdoor air) / Automobile air conditioners
■ Dehumidifiers and dishwashers (solid inside/surface)
■ Washer dryers, Radiators and showcase.

Characteristics:

1. Recommendation as follows:
R25℃=10KΩ±1% B25/85℃=3435K±1% or
R0℃=16.33KΩ±2% B25/100℃=3980K±1.5% or
R25℃=100KΩ±1% B25/85℃=4066K±1%
2. Working temperature range:

-30℃～+80℃,

-30℃～+105℃
3. Thermal time constant is MAX.20sec.

4. Insulation voltage is 1800VAC,2sec.
5. Insulation resistance is 500VDC ≥100MΩ
6. PVC or TPE sleeved cable is recommended
7. PH,XH,SM,5264 or other connectors is recommended
8. Characteristics are optional.

Dimensions:

Product specification:

Round Top tube temperature sensor

Refrigerator tube temperature sensor

Refrigerator probe temperature sensor
